1. Product Overview

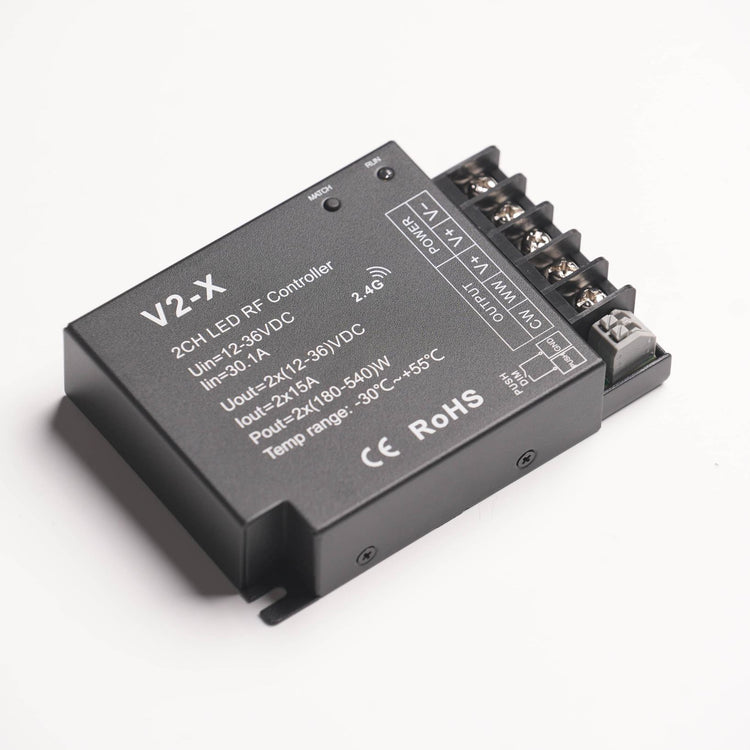

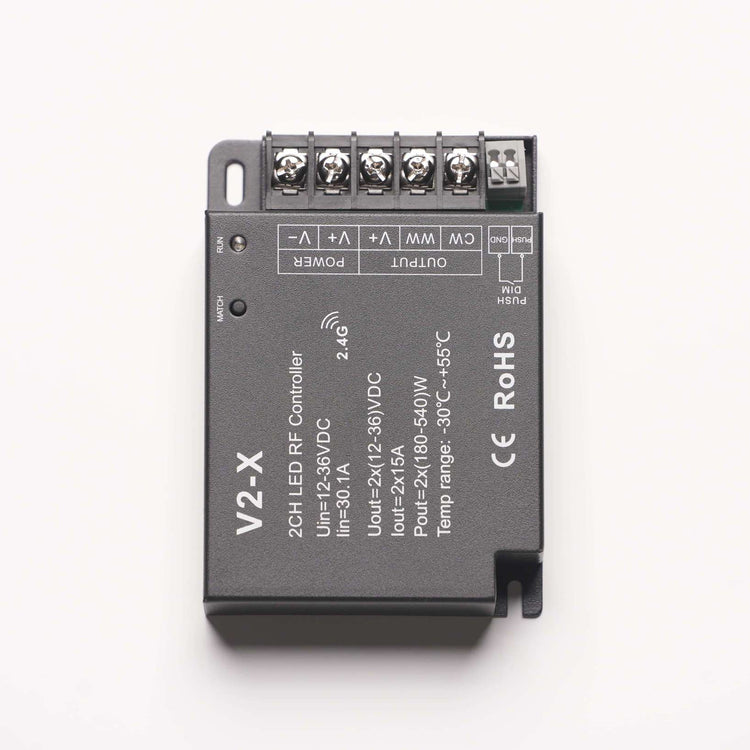

The V2-X LED Controller is a high-performance controller designed for dual-color LED strip lights, offering precise color temperature adjustment and smooth dimming control. It connects directly to a 12VDC–36VDC power supply and communicates with a remote controller via a 2.4GHz RF signal.

This controller connects directly to your power supply (input) and LED strip lights (output) via low-voltage wiring, ensuring a stable and efficient connection. It communicates seamlessly with your controller unit through a wireless RF signal for smooth operation.

Designed for versatility, this LED controller is fully compatible with all LED single-color, dynamic white, and temperature color LED fixtures, offering a reliable solution for a wide range of lighting applications.

Instruction : The three-level color temperature adjustment function is disabled by default at the factory. To enable this function, press and hold the pairing button for 15 seconds. To restore factory settings, quickly turn the power off and on twice, then press and hold the pairing button for 10 seconds.

Power-Off Memory: After setting the lighting state for 5 seconds, the current state is automatically saved. When powered back on, the lighting state remains unchanged.

2. Technical Specifications

Input Voltage: 12VDC–36VDC
Output Channels: 3 Channels (≤10A per channel)
Output Power: 12V < 360W, 24V < 720W, 36V < 1080W
Input Signal: 2.4GHz RF Remote Control
Control Method: Wireless remote control
Operating Temperature: -20°C to +55°C
Product Dimensions: 4.33 × 2.93 × 0.96 in
Certifications: CE, RoHS
Weight: 0.474 lbs
Water Resistance: IP20 (Indoor Use Only)
Warranty: 1 Year

Technical Specifications (PDF)：STONOVIA – Manual – LED Controller

3. Installation Guide

Wiring Diagram

Refer to the wiring diagram below to properly connect the controller:

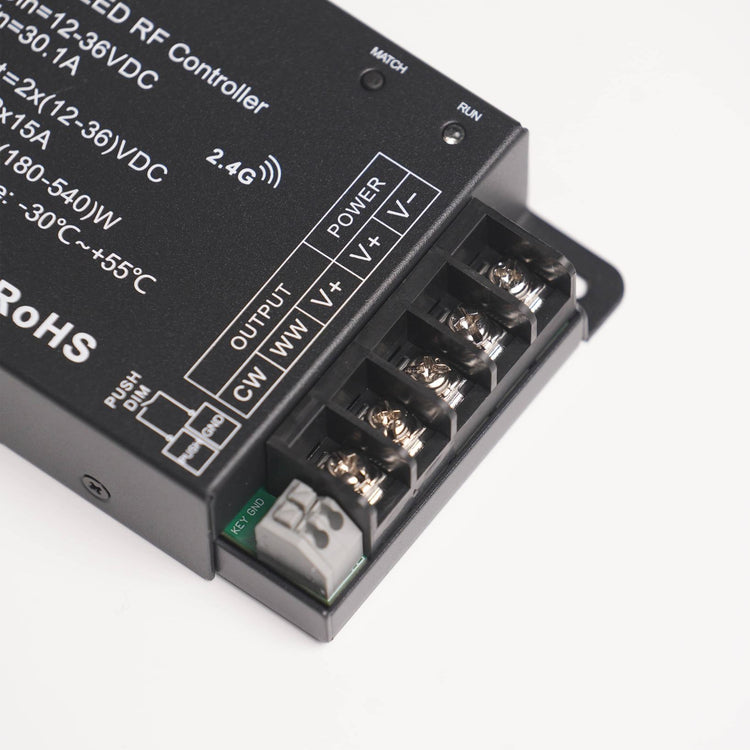

Step 1: Connect the power supply (12VDC–36VDC constant voltage) to the V2-X Controller’s input terminals.

Step 2: Connect the dual-color LED strip to the controller:

CW (Cool White) → Connect to CW terminal

WW (Warm White) → Connect to WW terminal

+ (Positive) → Connect to + terminal

Step 3: Ensure all connections are secure before turning on the power

4. Operation Instructions

4.1 Remote Control Pairing

To pair the RT2 Remote Control with the V2-X LED Controller:

Turn on the power to the controller.
Press and hold the pairing button on the controller for 15 seconds.
The controller will enter pairing mode, and the remote control will be linked.

4.2 Factory Reset

To restore factory settings:

Quickly turn the power off and on twice.
Press and hold the pairing button for 10 seconds.
The controller will reset to its default settings.

4.3 Power-Off Memory Function

The controller automatically saves the current lighting state after 5 seconds.
When powered back on, the previous lighting state will be restored.
