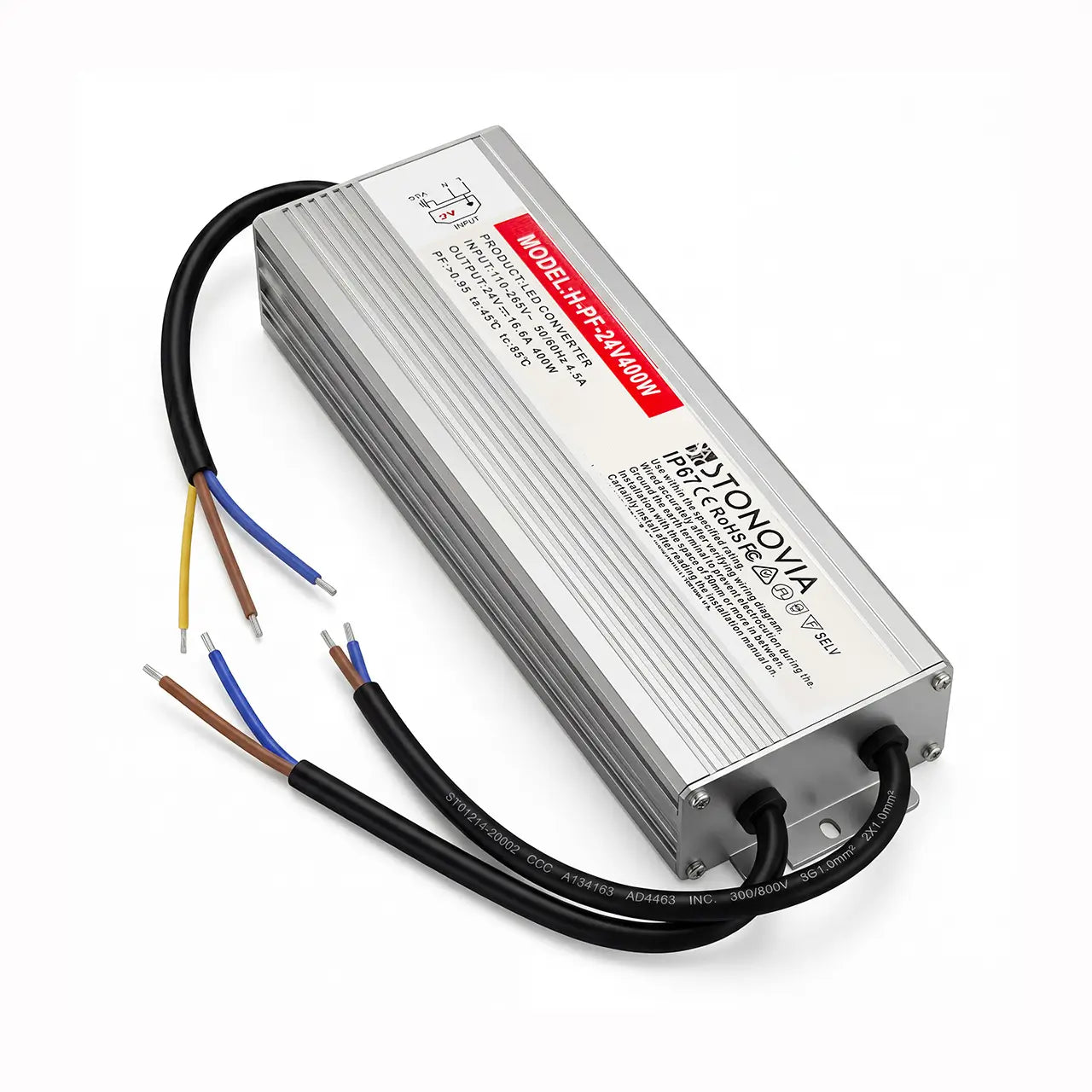

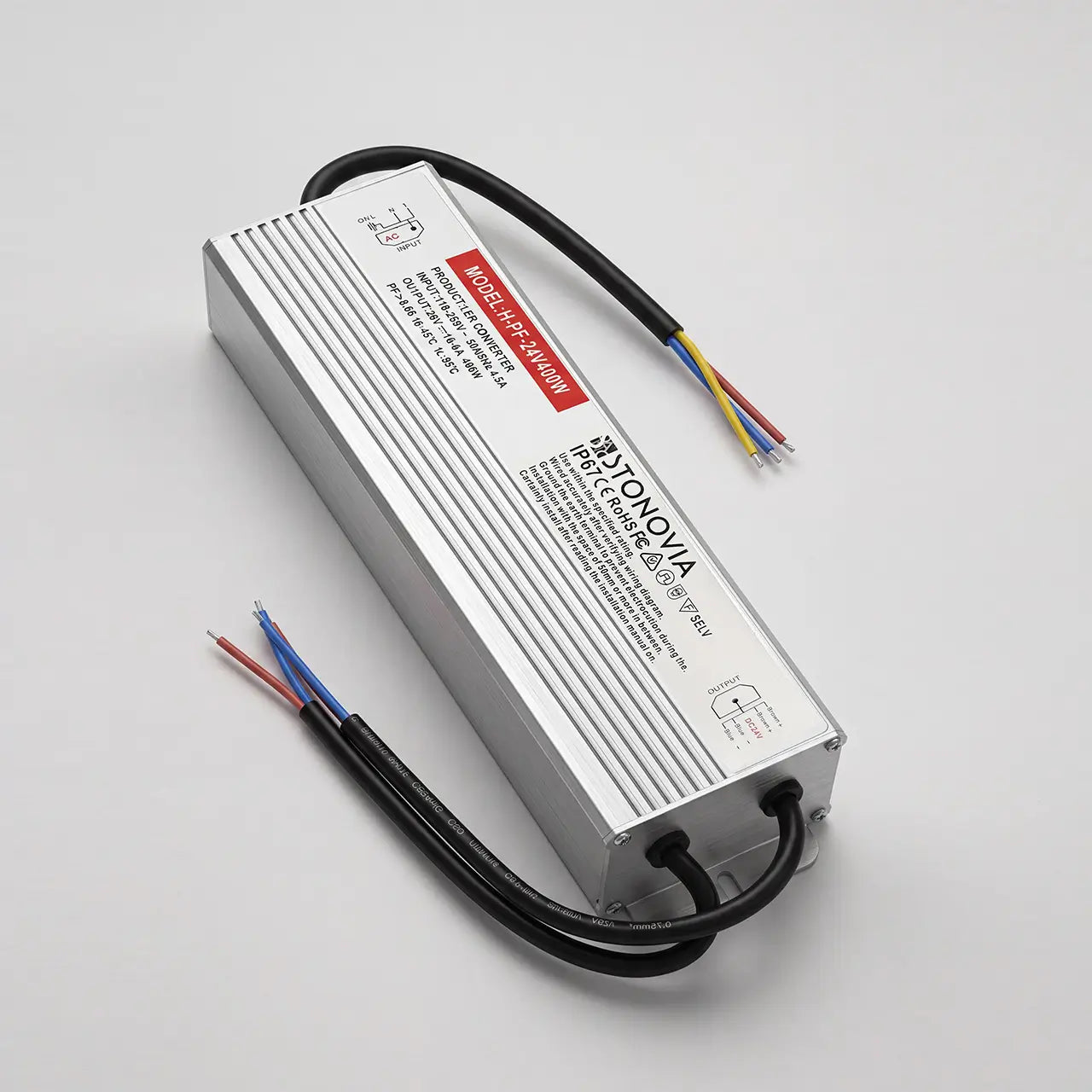

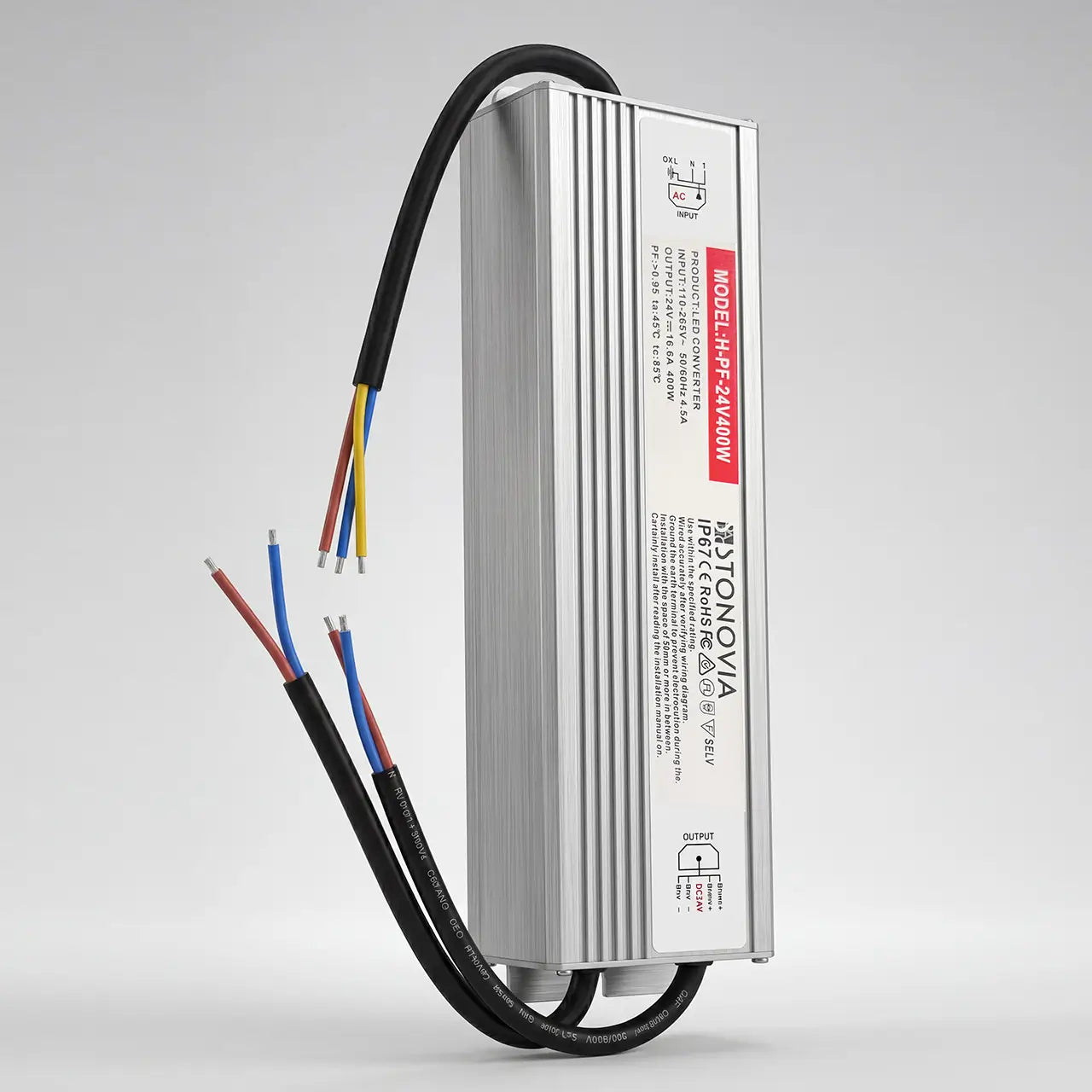

24V DC / 400W Constant-Voltage LED Driver

Model H-PF-24V400W supplies regulated 24V DC power for compatible LED lighting systems. It combines an IP67-rated enclosure, active power-factor correction and a low-profile 35mm body. Installation and all line-voltage connections must be completed by a qualified electrician in accordance with the markings on the actual unit and applicable electrical codes.

• 24V DC constant-voltage output; 400W maximum rated power.
• IP67-rated enclosure for protection against dust and water ingress. Connections and installation details still require suitable weatherproofing.
• Active PFC: PF ≥ 0.98 at 115VAC and PF ≥ 0.95 at 230VAC.
• Over-current, over-voltage and short-circuit protection.
• Low-profile 35mm body.
• STONOVIA warranty: 1 year. Manufacturer-stated service life above 50,000 hours.

With the STONOVIA V2-X controller, each 12 × 24-IN Flex LED Sheet is limited to 24W maximum total output. One 400W driver can support up to 10 LED sheets: 10 × 24W = 240W, leaving 160W of rated driver capacity before controller and wiring losses.

The sheet has cool-white and warm-white channels, each identified as 24W, but the V2-X controller shares the available output between those channels. Therefore, “24W + 24W” does not mean 48W simultaneous consumption in the STONOVIA system.

Model: H-PF-24V400W

DC output
Nominal voltage: 24V DC
Rated current: 16.7A
Output current range: 0–16.7A
Rated power: 400W maximum
Efficiency: 94.34%
Ripple and noise: 140mV
Load regulation: 1%
Line regulation: 1%

AC input
Input voltage: 110–265VAC
Frequency: 50–60Hz
Input current: 4.2A maximum
Power factor: ≥0.98 at 115VAC; ≥0.95 at 230VAC
Cold-start inrush: 40A at 230VAC
Surge protection: L/N 2kV; L/N–PE 4kV

Protection
Over-current: above 105%
Over-voltage: above 130%
Short circuit: hiccup protection

Environment
Operating: −20 to +45°C; 20–90% RH
Storage: −40 to +85°C; 10–95% RH
Ingress protection: IP67

Safety tests
Input–output dielectric: AC 2.0kV / 5mA / 60s
Input–enclosure dielectric: AC 1.5kV / 5mA / 60s
Insulation resistance: 100MΩ at 500VDC / 25°C

Physical
Dimensions: 275 × 73 × 35mm
Net weight: 1.3kg

STONOVIA warranty: 1 year
Manufacturer-stated service life: >50,000 hours
